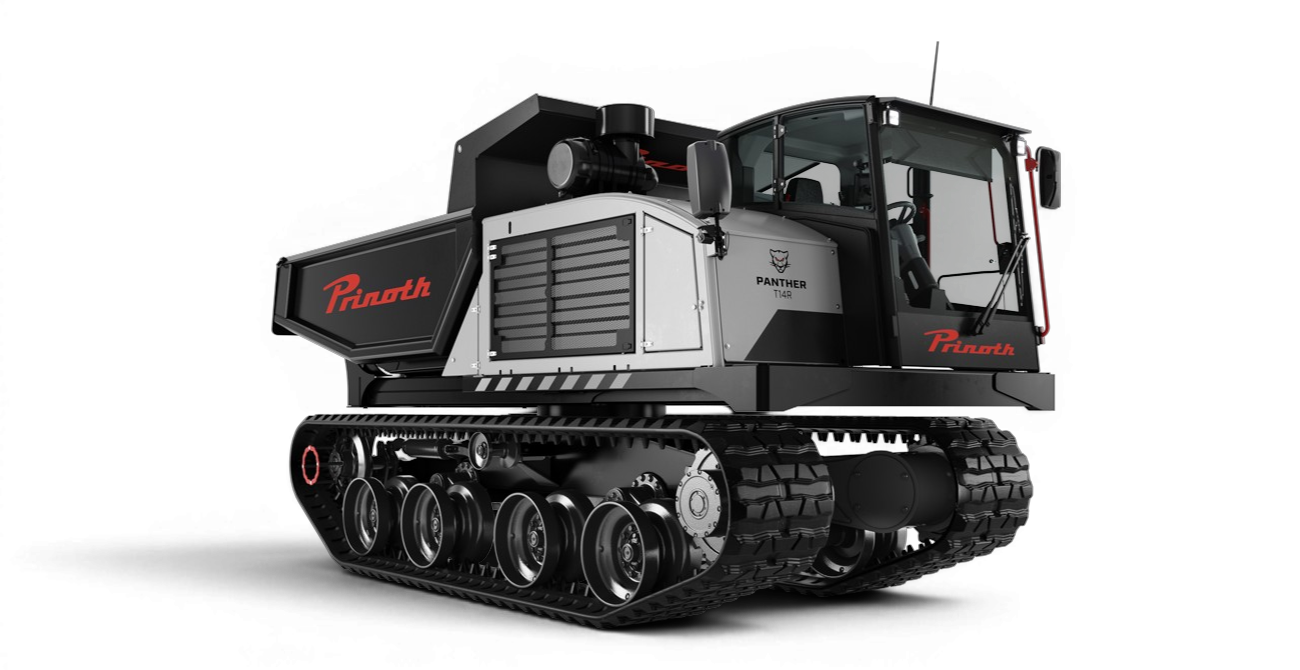

PANTHER T14R
Home / Produits / Rotating Dumpers /

PANTHER T14R

PANTHER T14R

The fastest & most productive crawler carrier on the planet.

Power

Power

275 HP @ 2200 rpm
205 kW @ 2200 rpm
Payload

Payload

29,100 lb
13.200 kg
Heaped Capacity

Heaped Capacity

8.5 yd³
6.5 m³
Contact us

Your Benefits

Finish the Job Faster

Finish the Job Faster

The combination of speed, agility, 14-ton payload, and rotatable design enables you to get more work done in less time.

Minimize Ground Impact

Minimize Ground Impact

Through its low ground pressure, rotatable design and flexible undercarriage, the Panther T14R improves your operational efficiency and increases safety.

Trust in your Panther

Trust in your Panther

All your projects are time-sensitive. Our Panthers are the most reliable carriers on the market, giving you peace of mind.

Large boulders for erosion control

Large boulders are used to build a wall to counter beach and shoreline erosion on the shores of Lake Michigan in the USA.

Large boulders for erosion control
Incredible Productivity All-Around

Panther T14R Rotating Dumper

The Prinoth Panther T14R is engineered to maximize productivity and efficiency in demanding environments. Its high payload capacity, advanced dumping mechanism, fuel-efficient engine, and superior maneuverability make it a valuable asset for a wide range of heavy-duty applications.

Features

Panther T14R

The Panther T14R has more than a rotating dump box, it offers continuous rotation of the upper portion of the vehicle independent from the undercarriage, providing an unmatched ability to work in tight areas and limiting ground disturbance.

Rotatable upper frame

Rugged large steel wheels/high-travel suspension allow vehicles to easily adapt to uneven soil, ruts and ditches. Self-cleaning undercarriage and tracks for all soil types and in all weather conditions. Automatic track tensioning system eases track care.

Steering wheel and pedal driving system are more ergonomic and play into keeping operators comfortable throughout the day. Standard air conditioning and spacious wide cab keep your workers focused and fresh.

The cabin

The overall architecture of Prinoth rotators offers unmatched visibility gains making it safer for everyone on the jobsite while increasing the operator confidence and, in turn, productivity.

Best jobsite visibility

Technical data

Download (PDF)

  • Power

    275 HP @ 2200 rpm
    205 kW @ 2200 rpm

  • Payload

    29,100 lb
    13.200 kg

  • Heaped Capacity

    8.5 yd³
    6.5 m³

  • Travel Speed

    8.4 mph
    13.5 km/h

  • Ground pressure

    3.90 psiproduct.detail. GP_T14R_RD
    26,9 kPaproduct.detail. GP_T14R_RD

  • Maximum Gradeability Uphill/Downhill

    27%
    15°

  • Maximum Gradeability Side hill

    27%
    15°

  • Weight

    36,663 lb
    16.630 kg

  • Length

    233.7 in
    5.936 mm

  • Shipping Width

    101.2 in
    2.570 mm

  • Height

    128.2 in
    3.257 mm

  • Fording depth

    47.2 in
    1.200 mm

  • Standard Equipment

    product.detail.SE_T14R_RD
    product.detail.SE_T14R_RD

  • Optional Equipment

    product.detail.OE_T14R_RD
    product.detail.OE_T14R_RD
