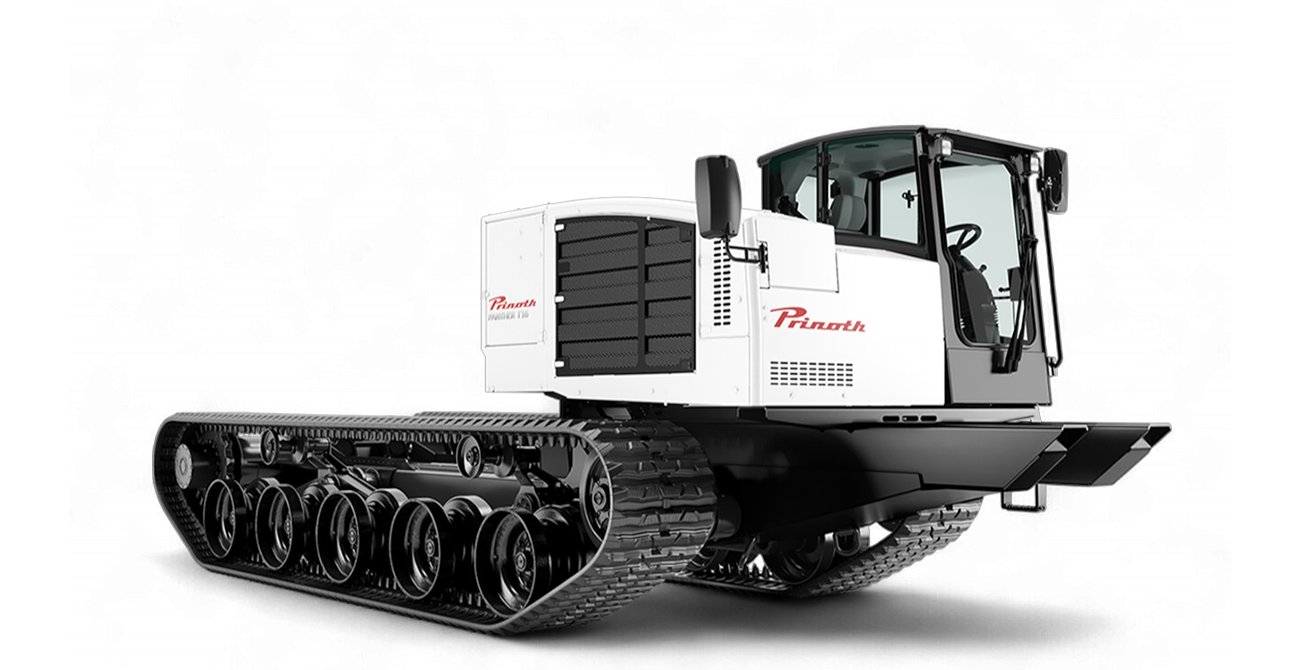

PANTHER T16
Home / Products / Bare Chassis /

PANTHER T16

PANTHER T16

The perfect model for large implements and capacity.

Power

Power

281 HP
209 kW
Speed

Travel Speed

8 mph
13 km/h
Payload

Payload

40,000 lb
18.143 kg
Contact us

Your Benefits

Capacity up to 75,000 lb for large implements

Capacity up to 75,000 lb for large implements

Mount your crawler carrier with implements capacity of up to 75,000 lb for a wide variety of industries.

Patented technology

Patented technology

Prinoth has several patents including all undercarriage technology which provides customers with superior off-road mobility.

The Best Product Support

The Best Product Support

Product support is extremely important to all our employees at Prinoth. We are customer-focussed and we answer every call with the goal to serve the customer.

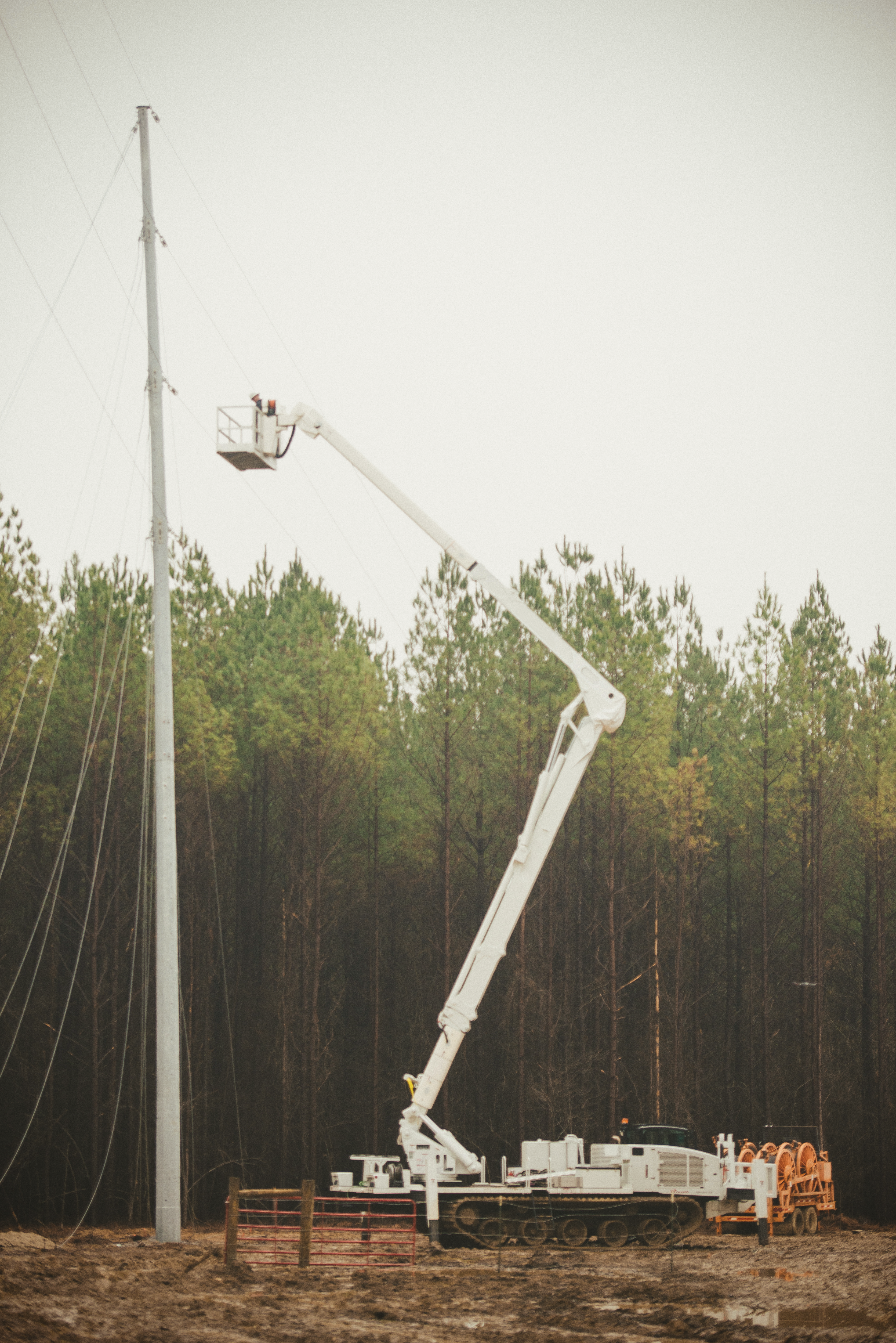

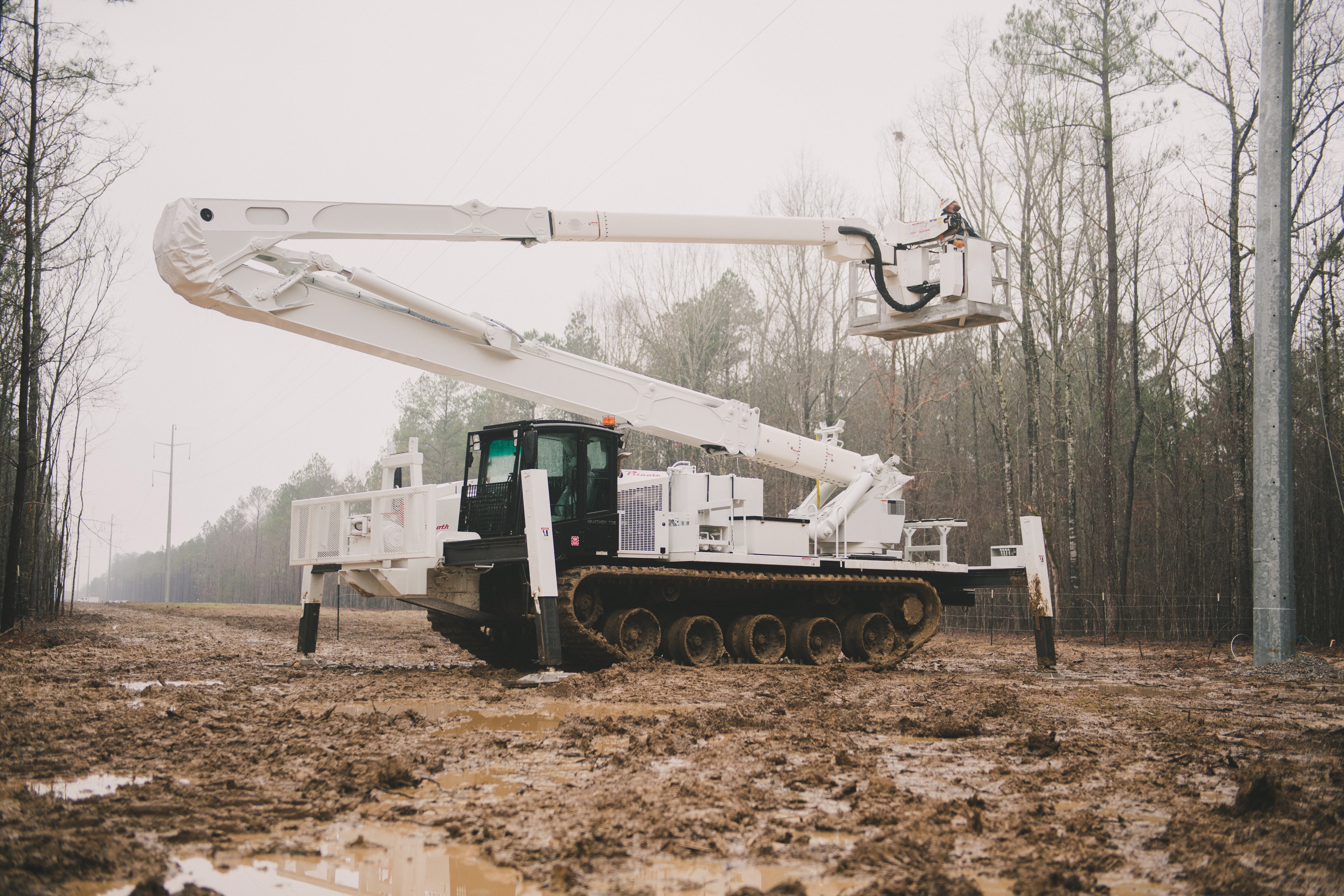

Power Electric Aerial

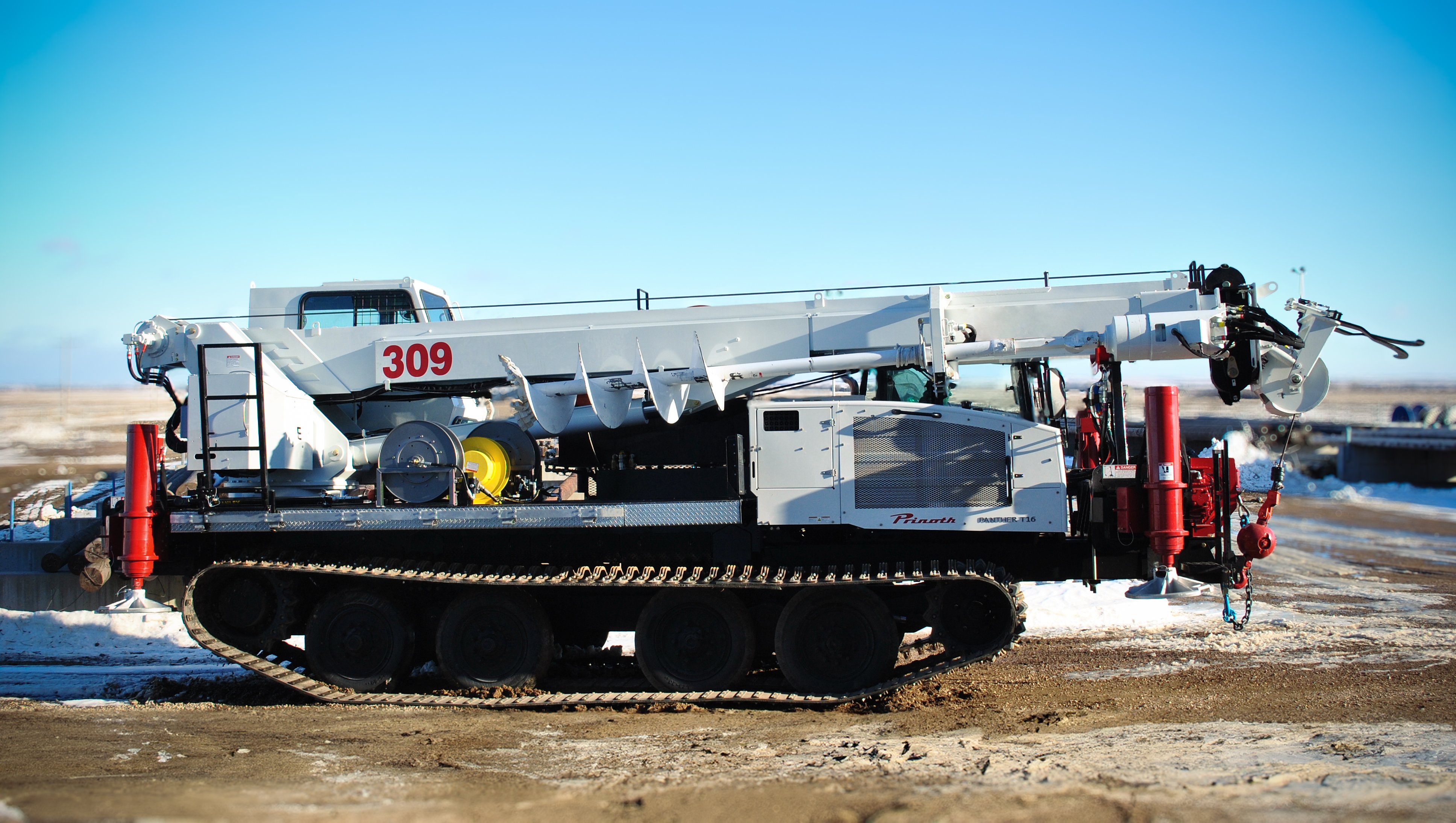

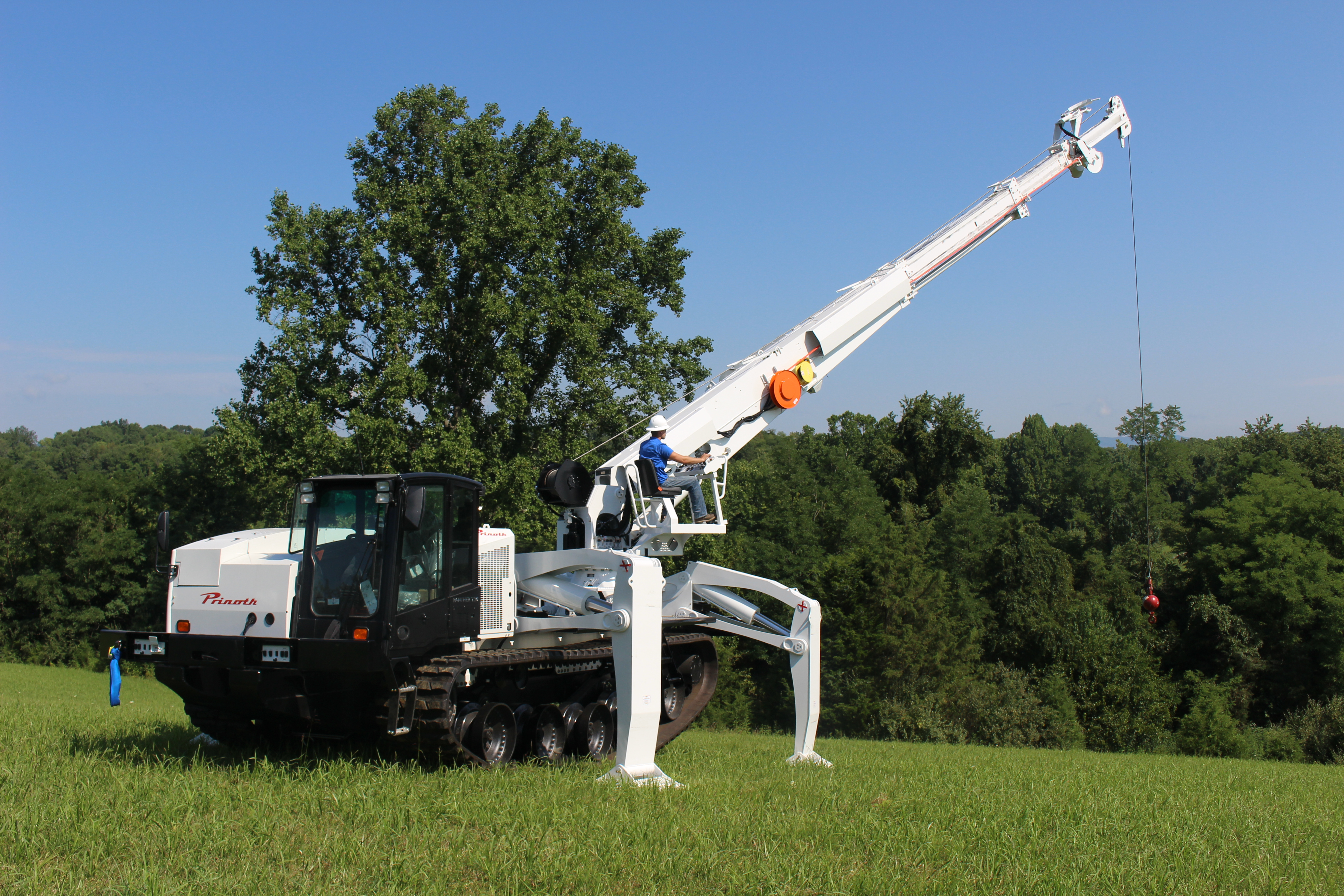

The Panther vehicles were first developed for the power electric market and has proudly been the leading tracked vehicle manufacturer for that industry for several years.

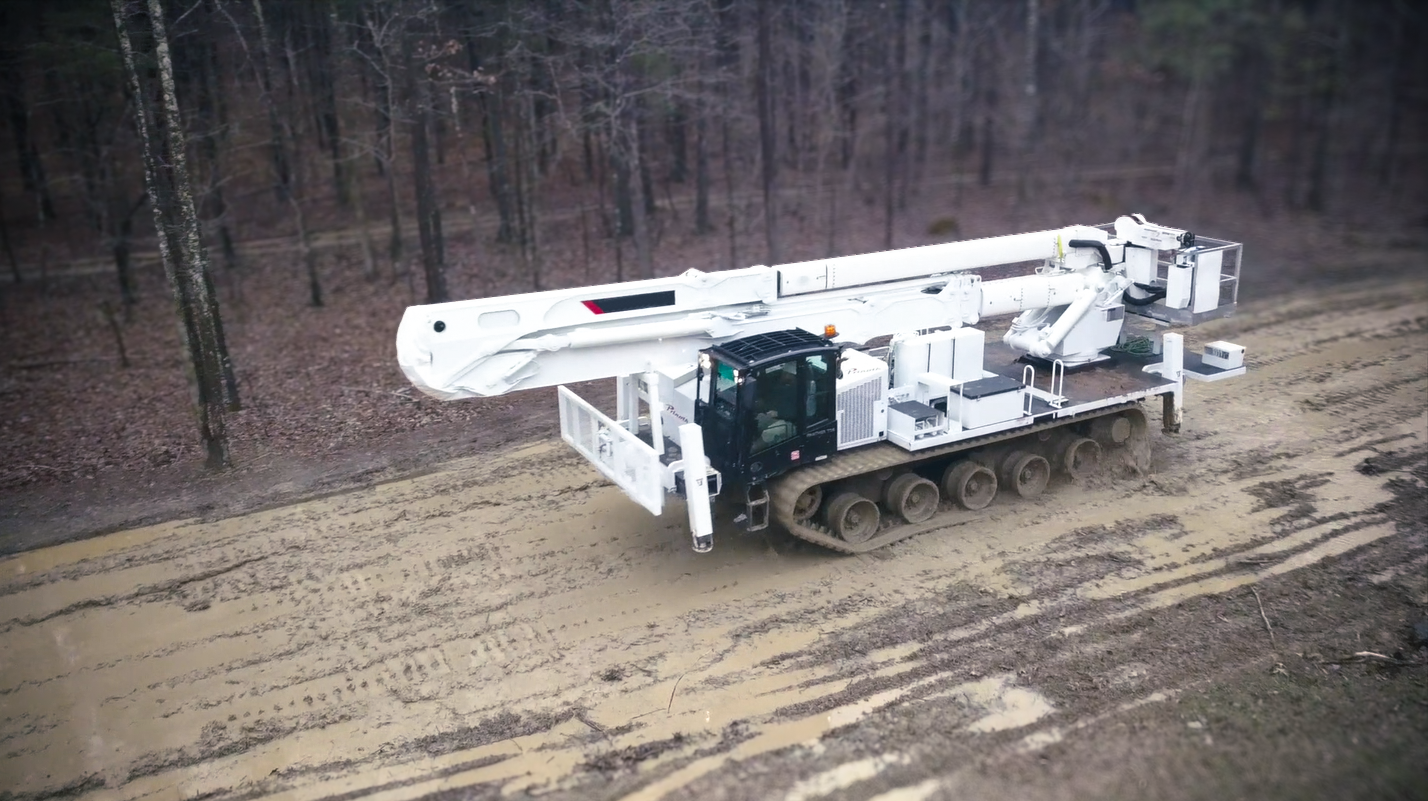

Ideal for heavy work

Ideal for heavy work

Features

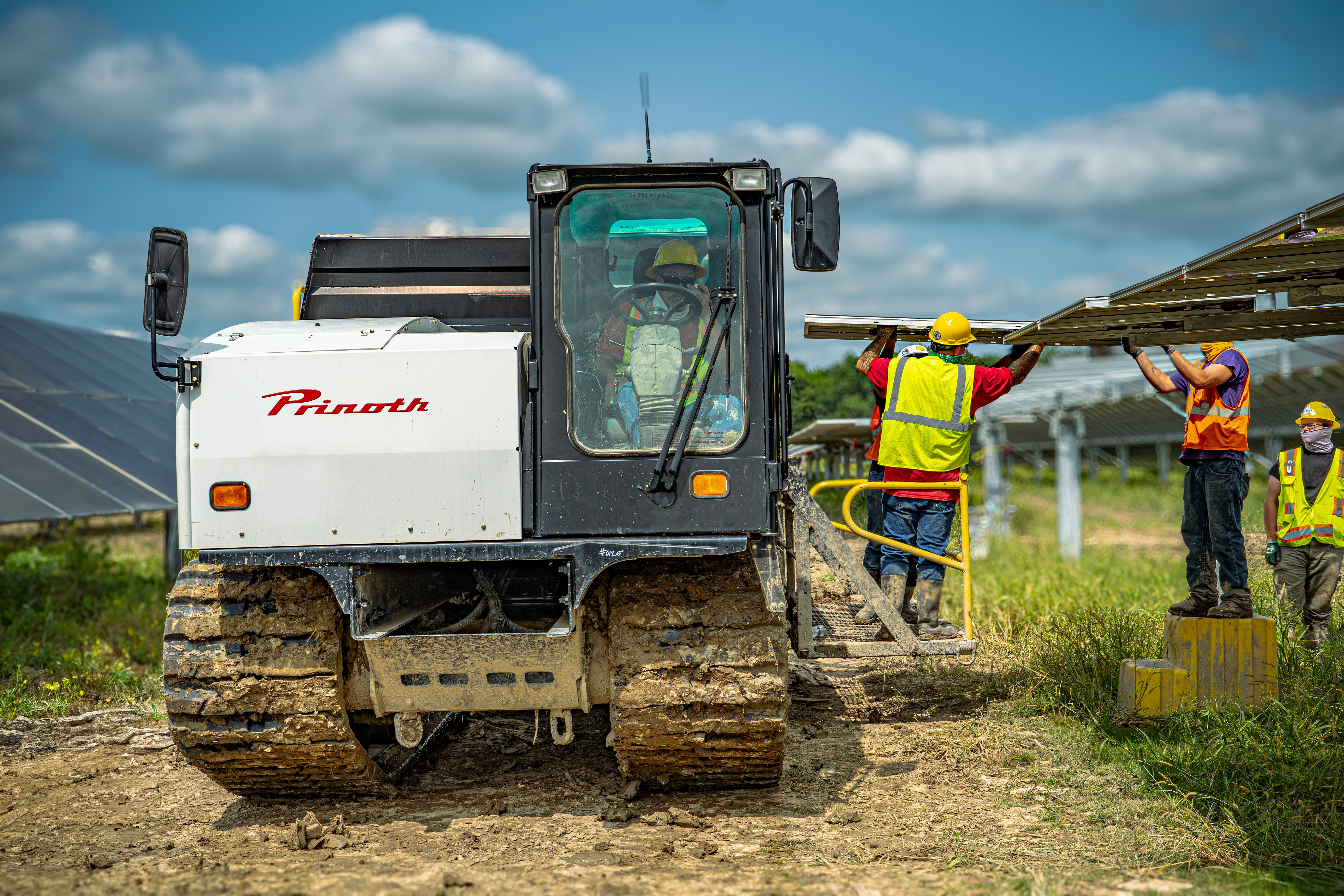

The Panther T16 is the second largest model Prinoth manufactures. It is also the best crawler carrier for the power electric industry to support companies building transmission and distribution lines, solar farms and even wind farms as it can accomplish multiple tasks with a capacity of up to 75,000 lbs.

Truck-style chassis for easy implement installations

The Panther T16 undercarriage was completely redesigned for the rubber track option to provide a sturdy undercarriage composed of five large wheels with both a tandem and a tridem suspension. PRINOTH’s patented tridem allows uniform distribution of the load over the rubber track while offering the same legendary suspension travel typical to all PANTHER models.

Patented suspension technology

There is now a choice between metal embedded solid rubber tracks (MERT) or the traditional D-dent track system. The rubber track option allows more versatility when crossing or traveling on roads as well as being gentler on shop floors when up-fitting or maintaining the vehicles.

All Prinoth Panther crawler carriers are equipped with standard air conditioning to keep your workers cool and provide longer comfortable working environment for them.

Standard air conditioning

Technical data

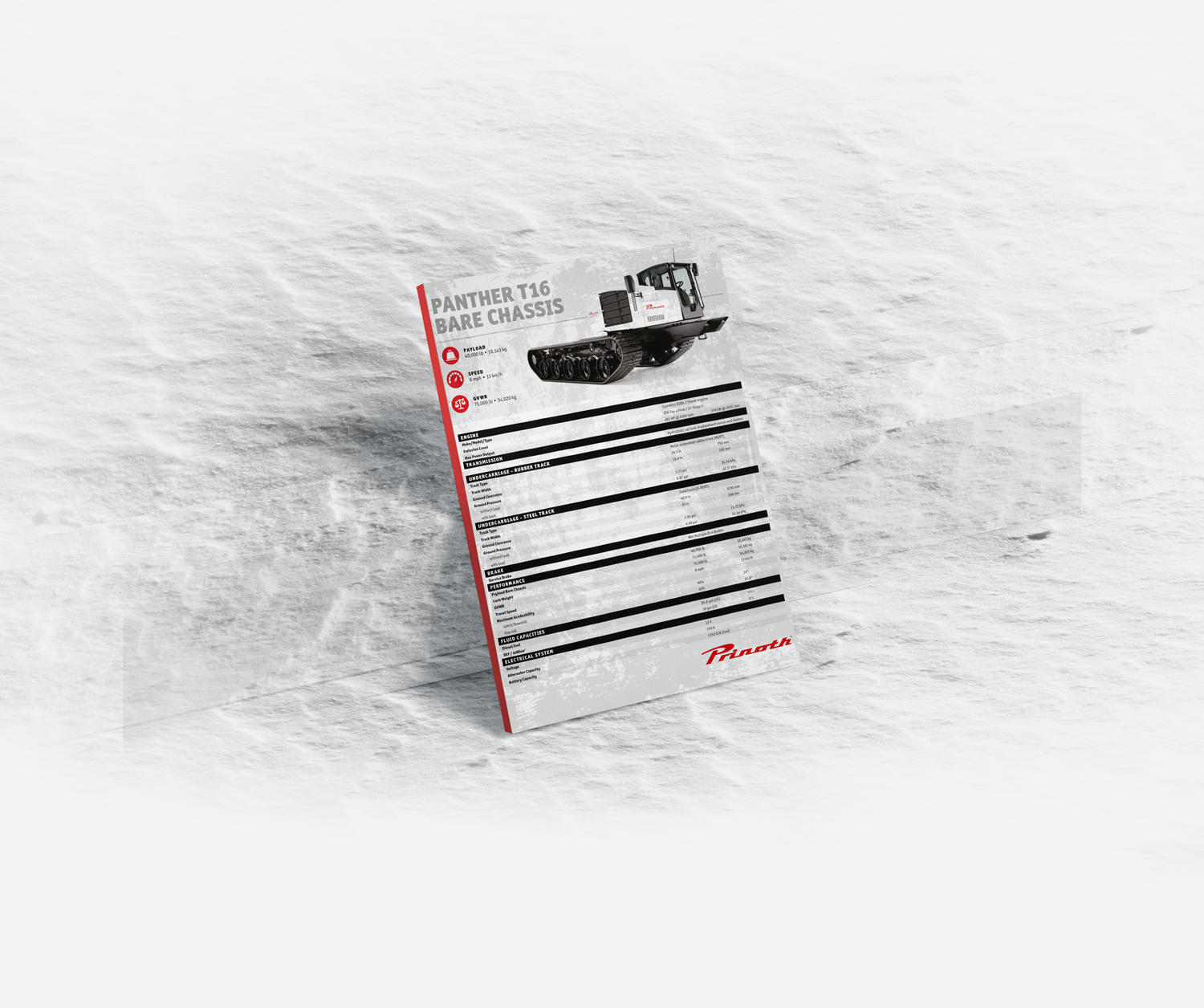

Download (PDF)

  • Power

    281 HP
    209 kW

  • Travel Speed

    8 mph
    13 km/h

  • Payload

    40,000 lb
    18.143 kg

  • GVWR

    75,000 lb
    34.020 kg

  • Ground pressure

    3.71 psi (unloaded)
    25,58 kPa (unloaded)

  • Maximum Gradeability Uphill/Downhill

    60%
    31,0°

  • Maximum Gradeability Side hill

    40%
    21,8°

  • Fording depth

    51 in
    1.300 mm

  • Weight

    33,495 lb
    15.193 kg

  • Length

    313.6 in
    7.966 mm

  • Shipping Width

    120.4 in
    3.058 mm

  • Height

    113.0 in
    2.869 mm

  • Standard Equipment

    Air conditioning
    ROPS ISO 3471
    Air conditioning
    ROPS ISO 3471

  • Optional Equipment

    Fleet management system
    FOPS ISO 3449
    Fleet management system
    FOPS ISO 3449
