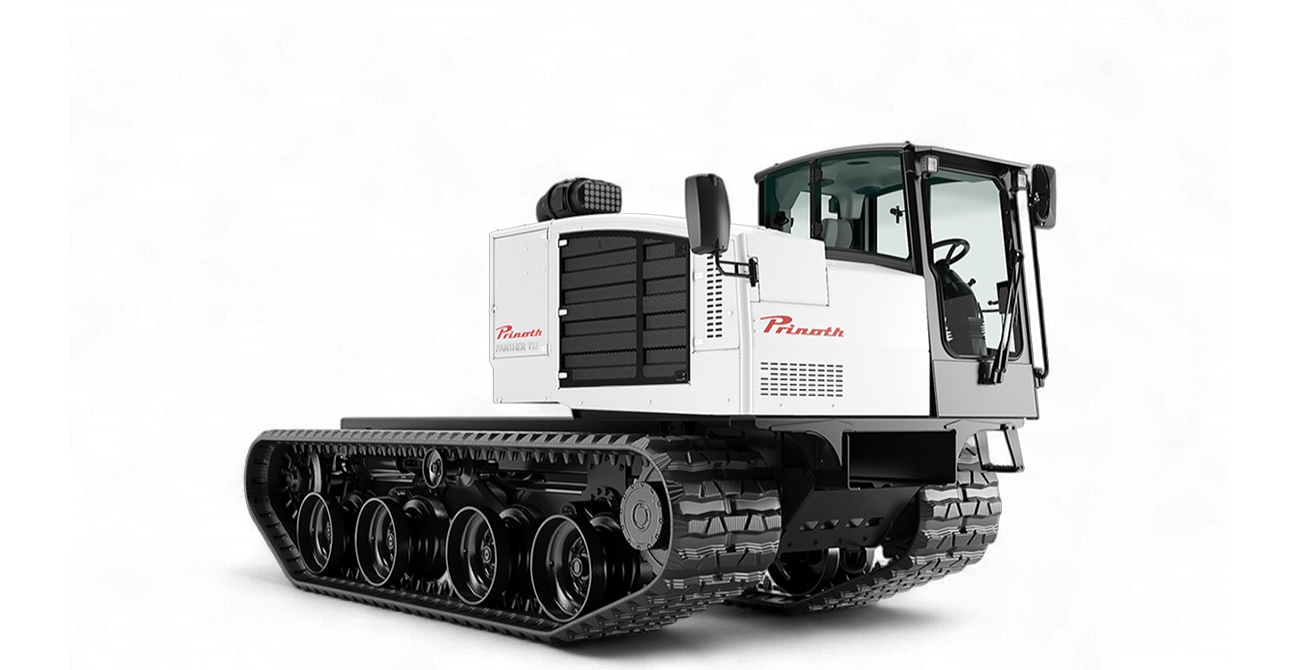

PANTHER T12
Home / Products / Bare Chassis /

PANTHER T12

PANTHER T12

The medium size crawler with the most capacity.

Power

Power

250 HP
186 kW
Speed

Travel Speed

8.4 mph
13,5 km/h
Payload

Payload

28,793 lb
13.060 kg
Contact us

Your Benefits

Bigger implements, smaller footprint

Bigger implements, smaller footprint

The Panther T12 can be mounted with heavier equipment than any other vehicle in its class. It has a capacity of up to 57,900 lb.

Made to be customized

Made to be customized

Your Panther is designed to be customized into the right tool for your own challenges.

Rugged through and through

Rugged through and through

Panther crawler carriers are built with heavy-duty components and have a rugged design that can withstand harsh working conditions.

Proudly contributing to organic farming in the UK

Farmland is probably some of the most cherished soils there are. Understandably so as they help grow our fruits and vegetables. This UK farmer appreciated how this low ground pressure Panther T12 allowed him to harvest his crops without damaging the grounds for next year’s organic carrot harvest.

Features

Available to allow additional space for implements

Narrow cab option

Environmentally-conscious with the cleanest fleet in the industry, Prinoth offers two EPA Tier 4 Final/Euromot Stage V engine brands; CAT’s C7.1 Diesel engine or Cummins’ B6.7 Diesel Engine.

Crawler carriers use tracks instead of wheels to provide operators superior traction and stability. This feature is especially beneficial in difficult terrains like muddy or uneven surfaces, where dependable performance is crucial.

Enhanced traction and stability

Our Panther tracks perform for all soil types in all weather conditions. One of the most important feature of our undercarriage, the automatic track tensioning system, means fewer greasing points and less daily maintenance before starting your day. Ultimately, it increases peace of mind.

Automatic track tensioning system eases track care

Technical data

Download (PDF)

  • Power

    250 HP
    186 kW

  • Travel Speed

    8.4 mph
    13,5 km/h

  • Payload

    28,793 lb
    13.060 kg

  • GVWR

    57,900 lb
    26.263 kg

  • Ground pressure

    3.50 psi (unloaded)
    24,13 kPa (unloaded)

  • Maximum Gradeability Uphill/Downhill

    60%
    31,0°

  • Maximum Gradeability Side hill

    40%
    21,8°

  • Length

    240.4 in
    6.107 mm

  • Fording depth

    51 in
    1.300 mm

  • Weight

    32,673 lb
    14.820 kg

  • Shipping Width

    101.2 in
    2.570 mm

  • Height

    114.9 in
    2.918 mm

  • Standard Equipment

    Air conditioning
    ROPS ISO 3471
    Air conditioning
    ROPS ISO 3471

  • Optional Equipment

    Fleet management system
    Inclinometer built in displays with adjustable arms
    FOPS ISO 3449
    Fleet management system
    Inclinometer built in displays with adjustable arms
    FOPS ISO 3449
